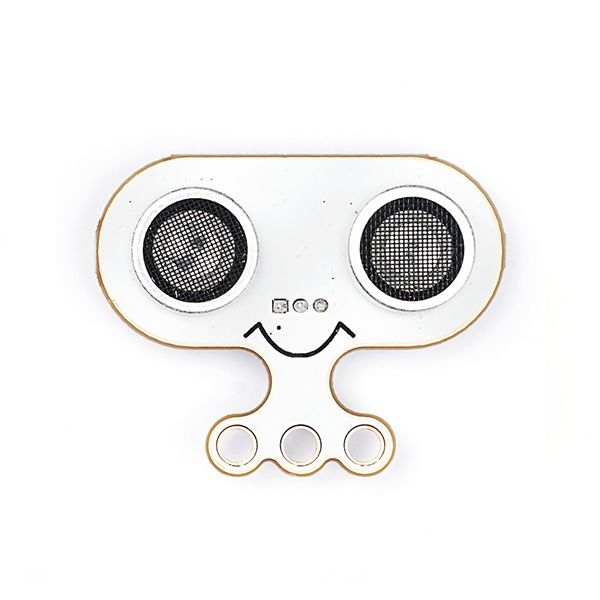

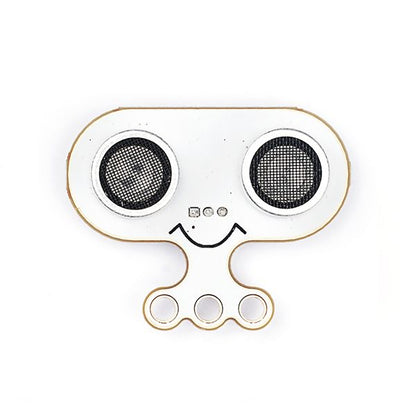

ELECFREAKS offers quality Octopus Sonar:bit (Distance Sensor Ultrasonic) which is a distance sensor ultrasonic, it can output stable and accurate measurement data and the error is only ±1cm
DESCRIPTION
Sonar:bit (Distance Sensor Ultrasonic) is a Distance Sensor Ultrasonic module with a 3-5V working voltage. It is available to be used in a 3.3V or 5V microcontroller system. With only one 3-wire(GVS) cable, it can work properly. Compared to the normal 4-wire ultrasonic module, it has saved one IO port. The measurement range of sonar:bit is 4cm-400cm. It can output stable and accurate measurement data with ±1cm tolerance only. You can use this module for occasions like short-distance measurement, smart cars, robots, micro:bit and Arduino teaching, etc.
DIMENSION
FEATURES
Input voltage:3V~5V
Enable to drive micro:bit or Arduino directly.
Standard 3-wire GVS connector, which occupies 1 IO port only.
DEFINITION OF PINS
INTRODUCTION OF MAJOR COMPONENTS
Transmitter
The transmitter is used to send ultrasonic signals.
Receiver
The receiver is for collecting ultrasonic signals.
MCU
This is the master chip of sonar:bit.
Chip for Sending Signal
This chip is used to drive the transmitter to send out ultrasonic signals.
Chip for Receiving Signal
This chip is used to receive and process ultrasonic echo signals as well as give feedback to the master chip.
G-V-S Port
G-V-S port allows outer devices control.
QUICK START
Hardware Connection
Connect sonar:bit to P2 port on sensor:bit and connect micro:bit to your computer.
Once completed, you can see the picture below:
Details
