Neopixel Rainbow LED strip and GVS conector -10 LEDs
Neopixel Rainbow LED strip and GVS conector -10 LEDs
Regular price
165.00
Regular price
Sale price
165.00
Unit price
per
Couldn't load pickup availability
DESCRIPTION

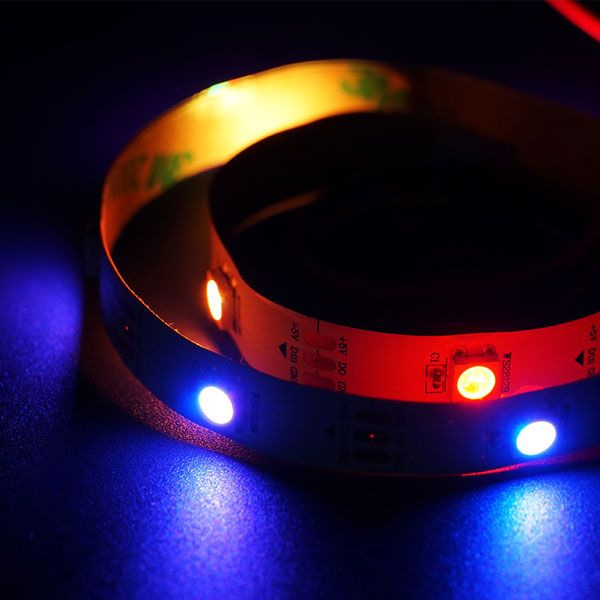

This is a colorful strip based on WS2812B beads, it can display the color RGB and support multiple cascades at the same time.
CHARACTERISTICS
Standard 3-pin GVS ports are easy to plug.
Both ends are equipped with a connector and it supports multiple cascades.
It can drive the micro:bit in 3.3V.
SPECIFICATIONS
| Items | Parameters |
|---|---|
| SKU | EF04098 |
| Working Voltage | DC 3.0V |
| Power Supply | 3V~5V |
| Connector Type | Analog |
| Number of beads | 10 pcs |
| Pins Definition | 1-Signal 2-VCC 3-GND |
| Response | Quick to response and high sensitivity |
| Circuit | Simple drive circuit |
| Stability | Stable and durable |

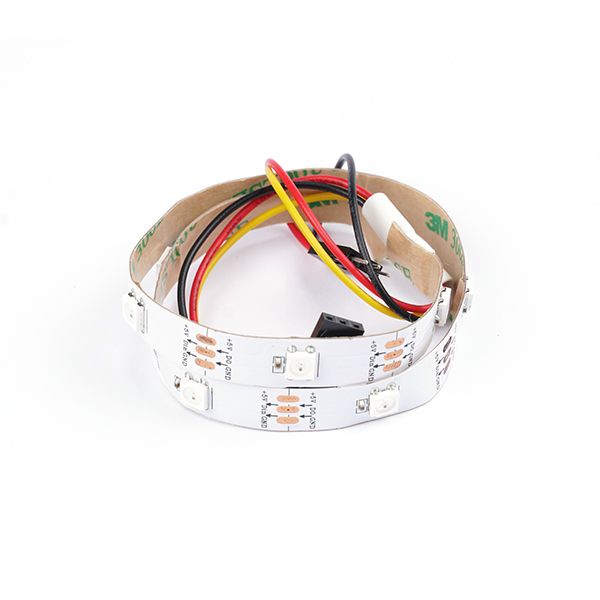

OUTLOOK & DIMENSIONS
CONNECTION DIAGRAM
Connect to the P1 port of the extension board.
ADD PACKAGE
Click "Advanced" in MakeCode to check more choices.
Click "Extensions", and search "neopixel" in the dialogue box to download the codebase of LED beads.
