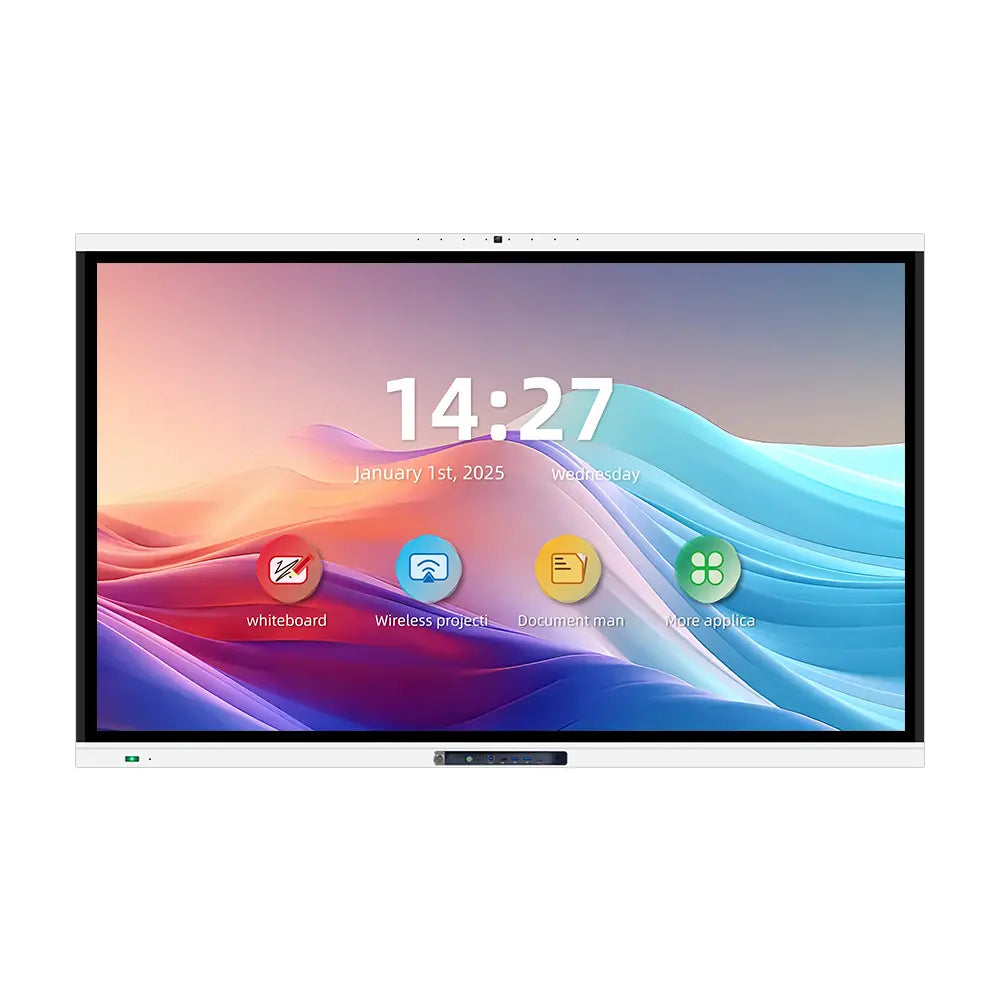

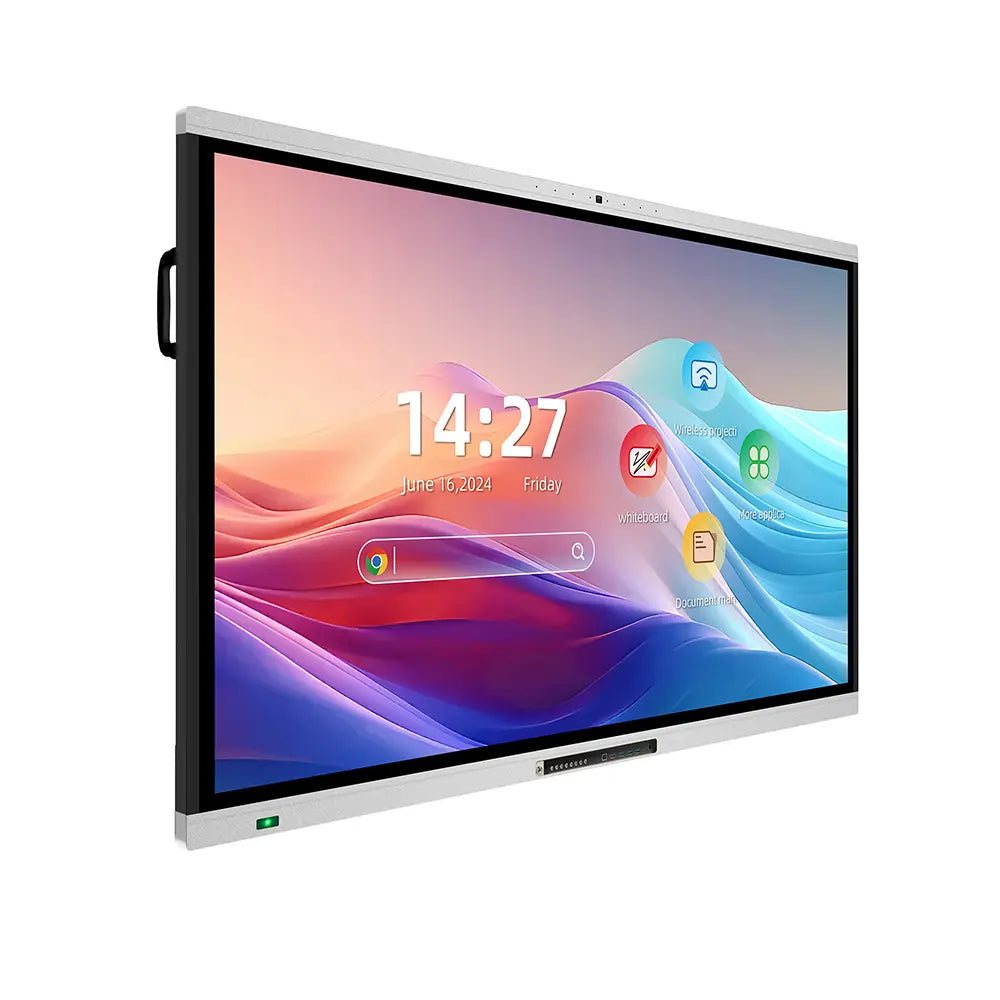

RK3588 Interactive Flat Panel
A premium 4K smart board built for classrooms, conference rooms, training spaces, and hybrid collaboration.
Smarter collaboration starts here
The EiBoard Interactive Flat Panel Z Series is designed to deliver a more accurate writing experience, smooth interaction, and powerful all-in-one performance. With a zero-bonding 4K panel, RK3588 octa-core processing, wireless screen sharing, and optional Windows OPS support, it is built to make teaching, presenting, and teamwork more engaging and efficient.
Ideal for education, enterprise meetings, training institutes, and hybrid conferencing.
4K UHD Clarity
3840 × 2160 resolution with an A-grade 4K panel, anti-glare tempered glass, and wide 178° viewing angle for crisp, vivid visuals.
Zero-Bonding Precision
Reduced parallax and improved touch accuracy help every note, sketch, and annotation feel more natural and precise.
RK3588 Performance
Powered by an octa-core RK3588 processor with 4 × Cortex-A76 and 4 × Cortex-A55 cores up to 2.4GHz for fast, responsive operation.
Wireless Screen Sharing
Share content from iOS, Android, and Windows devices, with support for up to 9 devices for collaborative presentations.
Built-In Camera & Mic
In-built 4K camera and 8-array microphone support video conferencing, remote teaching, and AI voice tracking.
Protected Front Access
A sliding lockable front bezel helps protect ports and controls from dust, moisture, and unauthorized operation.
Why teams choose EiBoards
- More accurate writing with zero-gap/zero-bonding technology
- Fast multi-touch interaction for annotation, whiteboarding, and teamwork
- Android and optional Windows workflows in one display
- Quick-access front controls for popular apps and panel functions
- OTA firmware and software updates for ongoing improvements
- Strong conferencing and collaboration capabilities in one device
Key specifications
| Available sizes | 65", 75", 86" |
| Resolution | 3840 × 2160 UHD |
| Processor | RK3588, 4 × Cortex-A76 + 4 × Cortex-A55, up to 2.4GHz |
| Android system | Android 13 / 15 for the RK3588 spec sheet; Z Series page also lists Android 14 / 15 / 16 options |
| Memory & storage | RAM 8GB (Optional Upgrades on pre orders only) |
| Touch |
IR touch, 20 points on Android and up to 50 points on Windows, response speed ≤3ms |
| Brightness | ≥450 cd/m² |
| Contrast ratio | ≥5000:1 |
| Network | LAN, Wi-Fi 2.4G + 5G, Wi-Fi 6, Bluetooth 5.2 |
| Audio | 20W × 2 speakers |
| Camera & mic | Built-in 4K camera, 13MP / 48MP options, 8-array microphone |
| Backlight lifetime | 50,000+ hours |
Input ports
- HDMI
- LAN (RJ45)
- AV In
- USB 3.0 / USB 2.0
- RS232
- Touch USB
- OPS Slot
Front & output ports
- Front: HDMI-in, USB-C, Touch USB, USB 3.0
- Output: HDMI Out, Coaxial, Earphone
- Front quick-access functions for power, anti-blue light, screen share, and screen record
Optional Windows OPS module
Add full Windows PC functionality with an OPS-C 80-pin module for enterprise software, desktop applications, and familiar meeting-room workflows.
- Intel 11th Gen i5 / i7 options
- 8GB DDR4 standard, Optional Upgrades 16GB / 32GB
- 256GB Optional Upgrades 512GB / 1TB SSD
- Pre-installed Windows 11 Pro
Built-in collaboration tools
Education
Interactive lessons, annotations, whiteboarding, and content sharing for modern classrooms.
Business
Presentations, brainstorming, video meetings, and team collaboration in conference rooms.
Training
Better engagement for workshops, seminars, and hands-on learning sessions.
Hybrid spaces
Built-in camera, microphone, and screen sharing tools support remote and in-room participants.
What’s in the box
- Power cable ×1
- Remote control ×1
- Touch pen ×1
- QC & warranty card ×1
- Wall brackets ×1 set
