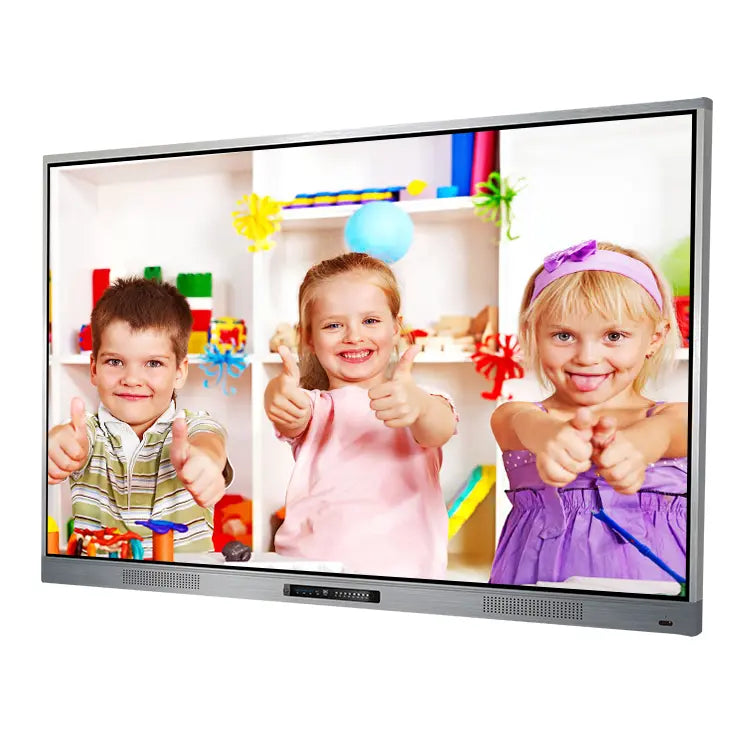

EIBOARD 65″ LED Interactive Smart Whiteboard

Model: FC-65LED

Next-Generation Touch Technology for Classrooms & Boardrooms

Overview

The EIBOARD FC-65LED Interactive Smart Whiteboard is a powerful all-in-one collaboration display designed for modern education and business environments. Equipped with a brilliant 65-inch 4K UHD display, advanced IR multi-touch technology, and an intelligent Android system, it delivers a highly responsive, intuitive, and immersive interactive experience.

Featuring a triple-sided ultra-narrow bezel, tempered explosion-proof glass, front sliding lock protection, and 20-point touch support, the FC-65LED transforms traditional spaces into dynamic, interactive learning and presentation environments. Its built-in interactive whiteboard tools, wireless screen sharing, and multi-user collaboration capabilities make it ideal for smart classrooms, training centers, and corporate meeting rooms.

Key Highlights

✔ Stunning 4K UHD Display

• 65″ LED DLED panel with 3840×2160 resolution

• 10-bit color depth for 1.07 billion colors

• High brightness ≥ 350 cd/m²

• Strong contrast ratio 4000:1 (higher on certain variants)

• 178° ultra-wide viewing angle

✔ Fast & Accurate Multi-Touch

• IR touch technology, driver-free

• Up to 20-point touch (multi-user writing)

• Ultra-fast response: ≤ 8ms

• Dual-pen and multi-finger writing supported

• Compatible with Windows, Android, Mac OS, Linux

✔ Powerful Android System

• Android OS options: 8.0 / 9.0 / 11.0 / 13.0

• CPU: Quad-Core 1.5–2.2GHz (depending on configuration)

• RAM options: 2G / 3G / 4G / 8G

• Storage (ROM): 16G / 32G / 64G / 128G

OPS Slot-in PC (Optional):
Add a Windows PC (Intel i3/i5/i7) for dual-system operation.

✔ Collaborative Smart Tools

• Built-in interactive whiteboard software

• Wireless screen casting (Android / iOS / Windows / Mac)

• Multi-device casting – supports multiple screens simultaneously

• Real-time annotation, screen recording, and file sharing

• QR code scanning to save and export lessons

• Smart classroom features: voting, split-screen, group collaboration

✔ Premium Build & Protection

• 4mm tempered, anti-glare, explosion-proof glass

• Triple-sided ultra-narrow bezel for maximum visual space

• Front sliding door with port protection

• Long backlight life: 50,000 hours

• Dual 15W speakers for powerful audio

Technical Specifications

Panel Specifications

System Specifications

Touch Specifications

Electrical Performance

Connectivity & Ports

Input Ports

• AV ×1

• YPbPR ×1

• VGA ×1

• Audio ×1

• HDMI ×3 (Front ×1)

• LAN (RJ45) ×1

Output Ports

• SPDIF ×1

• Earphone ×1

Other Ports

• USB 2.0 ×2

• USB 3.0 ×3 (front ×3)

• RS232 ×1

• Touch USB ×2 (front ×1)

Physical Buttons

Power, Source, Volume +/–, Home, PC, Eco Mode

Included Accessories

• Power Cable ×1

• Remote Control ×1

• Touch Pen ×1

• Instruction Manual ×1

• Warranty Card ×1

• Wall Mount Brackets ×1 set

Dimensions & Weight

Ideal Applications

• Smart Classrooms

• Corporate Meeting Rooms

• Online Learning Studios

• Training Centers

• Exhibition & Presentation Halls

• Hybrid Meetings & Video Conferencing
