MVR 160.00

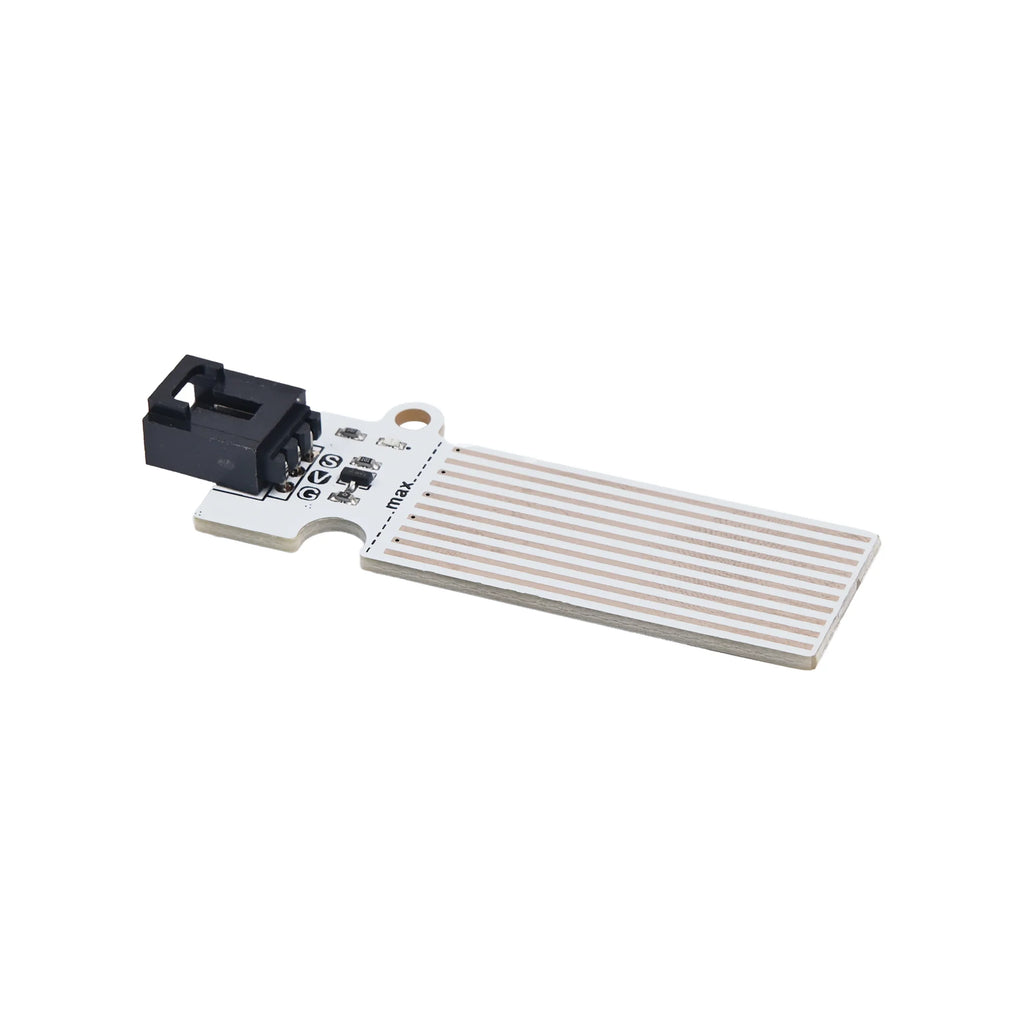

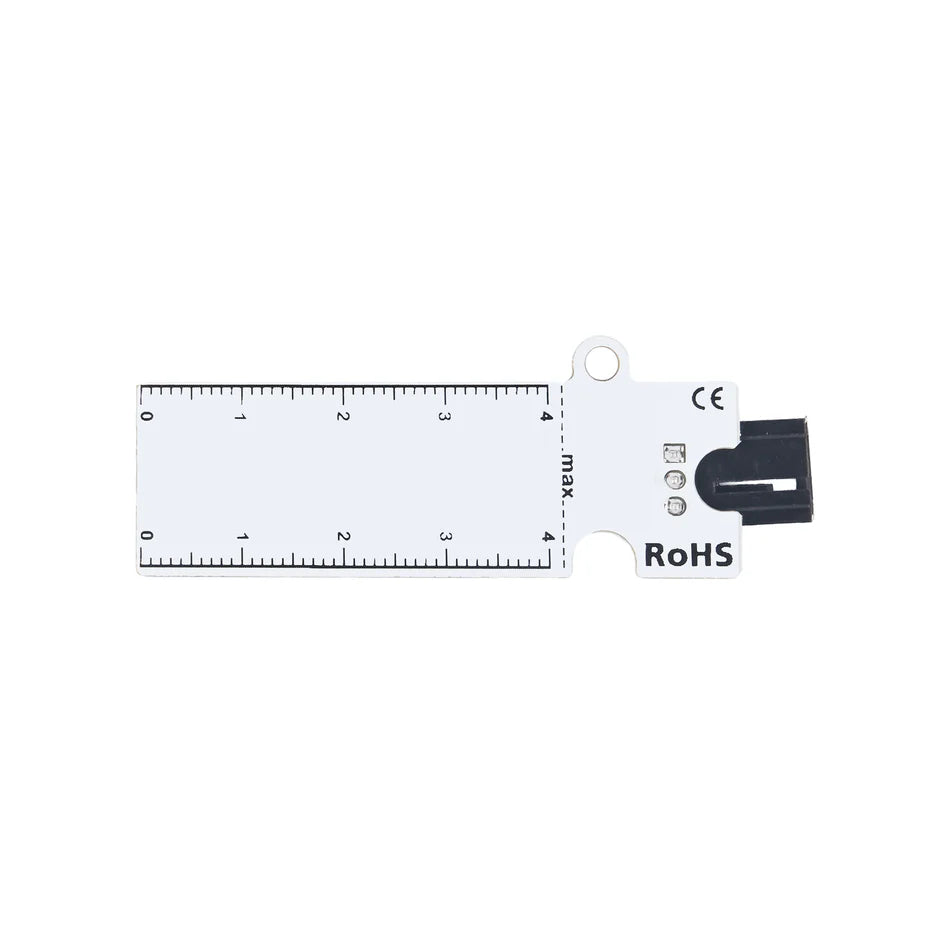

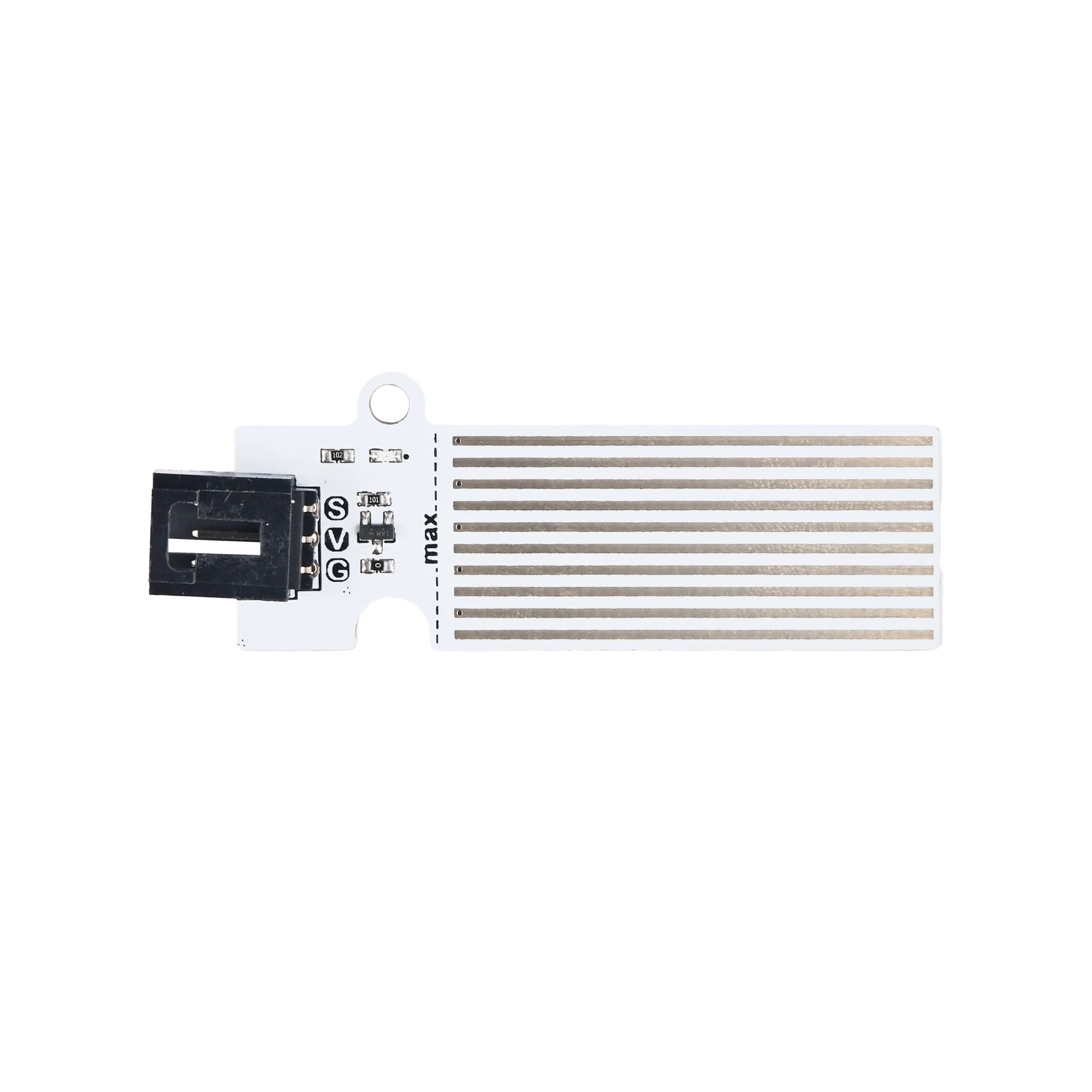

Octopus Water Level Sensor
ELECFREAKS Octopus Water Level Sensor is the water level electric brick in our Octopus series, the basic design is from the Octopus electric bricks, and the setting of its outlook, the PCB fixing hole, and the connectors are the same.
Octopus Water level electric brick is a simple, easy-to-use, high performance with reasonable prices sensor, the water level is detected by the exposed parallel wires and the water volume.
It can convert the water volume to an analog signal easily and the output value can be recognized by micro:bit and thus make the water level alarm happen.
Notice: The components above the MAX water level are not waterproof, please do not put them in the water.
CHARACTERISTICS
Simple, easy to use with a small size.
Support micro:bit in 3V.
Easy and convenient for connection.
SPECIFICATION
| Items | Parameters |
|---|---|
| Name | Octopus Water level sensor |
| SKU | EF04094 |
| Working Voltage | DC 3~5.5V |
| Connection Mode | G-GND，V-VCC，S-signal pin |
| Size | 59.15 x 19mm |
| Net Weight | 5.5g |
CONNECTION DIAGRAM
Connect the module with the wire(with buckle) to the PI pins on the Octopus:bit, and insert the micro:bit to the Octopus:bit.
PROGRAMMING
Program in the makecode and analog read P1 to get the value of water level that would be showing on the micro:bit. Links
You can also download it directly:
